Suis Kebijaksanaan Kalis Air Dengan Getah Silikon
It's miniature tactile button switch with blue silicone rubber button,the silicone can reduce the noise when you press the tact switch,it's surface mount type mount way
Description/kawalan

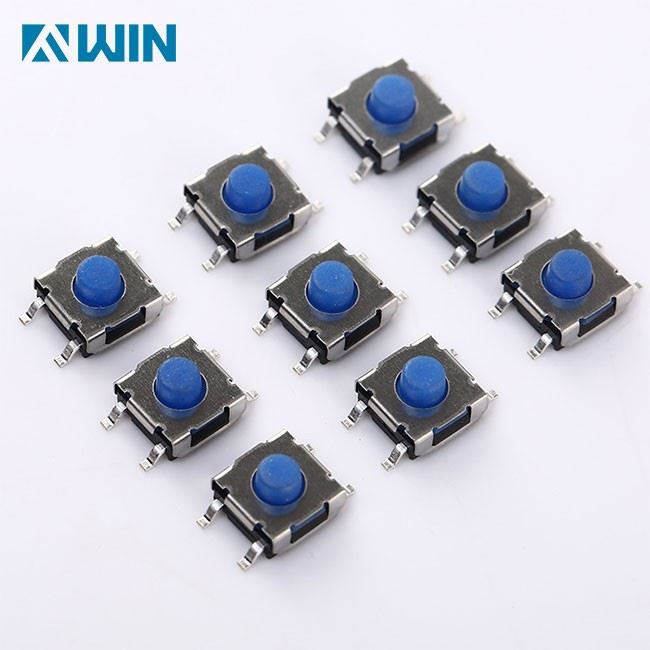

Getah Silikon Biru 6.2x6.2mm Suis Kebijaksanaan Kalis Air SMT
It's miniature tactile button switch with blue silicone rubber button,the silicone can reduce the noise when you press the tact switch,it's surface mount type mount way,it's packed with loose or tape ways,the waterproof silicone surface mount tactile switch is spread used to small home appliance,digital product,wearable product and office equipment as well as medical device.
Spesifikasi produk
Jenis Produk: Getah silikon 6.2x6.2MM
Warna Getah: Biru
Dimensi: 6.2x6.3MM
Dinilai:DC12V 0.5mA
Pasukan Operasi: 180-250gf
Pakej: kaedah longgar atau pita
Paparan Produk
Spesifikasi
2.6. KETAHANAN
2.6.1 | Operation life | Measurement shall be made following the test set forth below: DC 12V, 50 mA resistance load, Rate of operation:60 times/min.; Operating Force:1.5OF; Average fault-free life:300,000 cycles | Contact resistance: Less than or equal to 200mΩ Contact bounce: Kurang daripada atau sama dengan 10ms Operating Force: initial value±30 percent |
2.6.2 | Getaran | Measurement shall be made following the test set forth below: 1) Vibration frequency range: 10Hz to 55Hz to 10Hz; 2) Amplitude: 1.5mm; 3) Direction of vibration: three mutually perpendicular direction including the direction of stem travel 4) Duration: Each 2hours. | |
2.6.3 | Operation Force | The switch is placed perpendicular to the direction of the operation, gradually force in key top center of switch, measure maximum intensity when it conducted required. | 260±70gf |
2.6.4 | Over Travel | Switch at the vertical operating orientation placement, with a force equal to 2 times according to the static load applied on the switch button the top center, measure the top moving distance | {{0}}.35 tambah 0.2/-0.1mm |
2.6.5 | Return force | The sample switch is installed such that the direction of switch operation is vertical and upon depressing the stem in its center to the whole travel distance, the force of the stem to return to its free position shall be measured. | 50gf.min. |
2.6.6 | Stop strength | Placing the switch such that the direction of switch operation is vertical, and then a static load of 30N shall be applied in the direction of stem operation for a period of 1 min. | There shall be no sign of damage mechanically and electrically. |
2.6.7 | Stem strength | Placing the switch such that the direction of switch operation is vertical, and then the maximum force to withstand a pull applied opposite to the direction of stem operation shall be measured. | 1Kgf.min. |
Pakej
1. 500pcs/1000pcs of PE bag or anti-static bag inside package
2. PE bag,anti-static bag,reel packing,Skin packing
Why choose our company?
1. Manufacture experience: 13-year experience in this field.
2. Jaminan kualiti: Semua produk akan melalui banyak ujian dengan teliti sebelum penghantaran.
3. Kapasiti pengeluaran yang kompetitif dan penghantaran cepat.
4. Manufacturer's price: Factory direct sale, most competitive price.
5. We provide OEM/ODM service, If you have unique design, we can handle the whole development
